Caratteristiche

Specificazioni

Type: Inkjet Printer, Inkjet Printer

Applicable Industries: Building Material Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Construction worksÂ , Advertising Company

Condition: New

Plate Type: UV Flatbed Printer

Usage: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer, UV Flatbed Printer

Automatic Grade: Automatic

Color & Page: Multicolor

Voltage: 110V/220V

Dimensions(L*W*H): L1060mm*W2100mm*H1160mm

Weight: 400 KG

Warranty: 1 Year

Print Dimension: 900mm*600mm

Ink Type: UV Ink

Key Selling Points: High-accuracy

Marketing Type: Ordinary Product

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor, Engine

Product Name: Ntek 6090 Mini UV printer 9060 Inkjet Printer

Keyword: mini uv printer

Printihead: XP600/TX800/DX5/DX7/i3200, Ricoh GH2220/G5i, Toshiba CE4

Print Color: CMYK LC LM W V optional

Print Speed: 3-12 sqm/h

Lamp: LED UV Lamp

Application: Indoor Outdoor Advertisement

Life of printed image: 5years(outdoor), 10years(indoor)

After-sales Service Provided: Engineers available to service machinery overseas

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: Standard plywood case packing

Supply Ability: 500 Set/Sets per Year

Descrizione di prodotto

Product Description

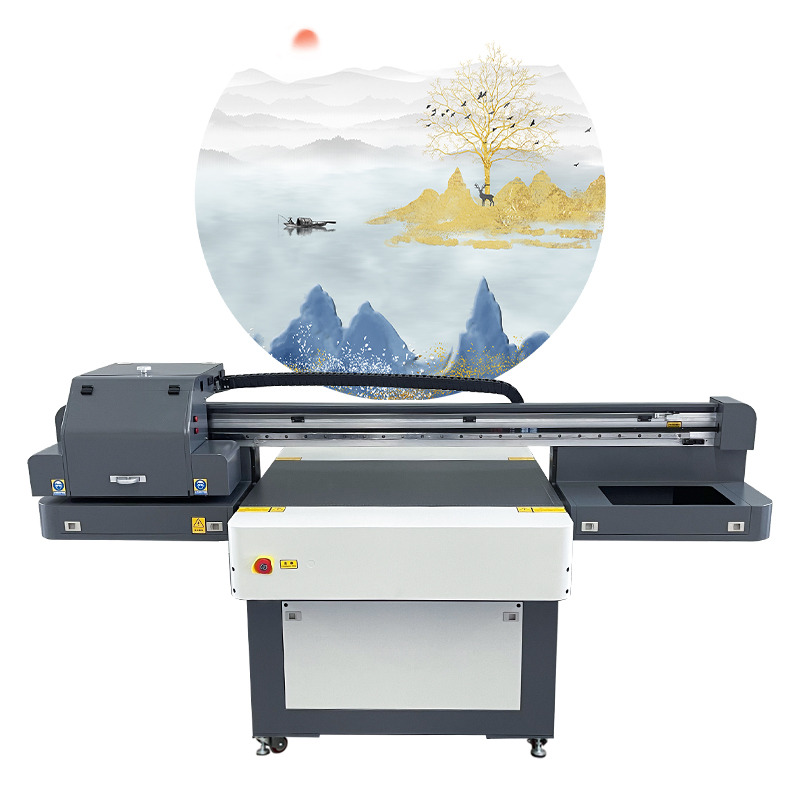

Ntek 6090 Mini UV printer 9060 Inkjet Printer

UV flatbed printer can widely print on glass, ceramic tile, PVC, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, corrugated cardboard, leather, flex banner, canvas, mesh paper, sticker, wallcoverings, etc.

Printhead Optional

XP600/TX800/i3200/DX5/DX7/

Ricoh G5i/GH2220/Toshiba CE4

2-8 units

Print Effect

Color, white, varnish and 3D

embossing effect optional

Printing Areas

Glass/Ceramic/Decoration/

Advertising&Sign industry

Product Specification

Product Name & Model	UV Flatbed Printer YC6090
Printhead Type	XP600/TX800/i3200/DX5/DX7, Ricoh G5i/GH2220, Toshiba CE4
Printhead Number	2-8 heads
Ink Characteristics	UV Curing Ink (VOC Free )
Ink Reservoirs	Refillable on the fly while printing/1000ml per color
LED UV Lamp	More than 30000-hours life
Printhead Arrangement	C M Y K LC LM W varnish optional
Printhead Cleaning System	Automatic Cleaning System
Guide Rail	TAIWAN HIWIN
Working Table	Vacuum Sucking
Printing Size	2500*1300mm
Print Interface	USB2.0/ USB3.0/ Ethernet Interface
Media Thickness	0-100mm, higher can be customized
Life of Printed Image	3 years (outdoor), 10 years (indoor)
Printing Resolution& Speed	720*600dpi	4pass	4-16sqm/h
	Printing Resolution& Speed	720*900dpi	6pass	3-11sqm/h
		720*1200dpi	8pass	2-8sqm/h
Life of Printed Image	3 years (outdoor),10years (indoor)
File Format	TIFF, JPEG, Postscript, EPS, PDF etc.
RIP Software	RipPrint/ Photoprint optional
Power Supply	220V 50/ 60Hz (10%)
Power	3100W
Operation Environment	Temperature 20 to 30℃,Humidity40% to 60%
Machine Dimension	106021001160mm
Packing Dimension	243512201340mm
Weight	400kg
Warranty	12 months exclude the consumables like printhead

6090 UV Flatbed Printer Advantages
1. Our printing size is 900*600mm, the printing speed of 900mm width is faster than that of 600mm
2. Our uv printer is with white ink stir system, which can avoid the white ink precipitation
3. With ink level alarm function, can remind customer to fill ink when it’s below the floating deadline
4. Our 6090 printer is printhead carriage move, working table not move, movement more stable
5. Our printer guide rail and cross beam designed bigger, with good printer performance
6. Rotary device is optional for bottle printing, which realize both flatbed mateiral print and bottle print

YC6090 UV Flatbed Printer-Each Part Name

① UV LED Lamp ② Printhead ③ TAIWAN HIWIN Guide Rail
④ Switch Area ⑤ Universal Wheel

YC6090 UV Flatbed Printer Size : 2100*1060*1160mm

9060 UV Flatbed Printer-Each Side

Printer details

1. Printhead Type

Our 9060 printer can be with Japanese imported
DX5/DX7/XP600/TX800/i3200, Ricoh GH2220/
Gen5i or Toshiba CE4 head optional, which
provide a high-precision printing

2. Ink Characteristics

Our inkjet printer Use non-VOC environmental UV
curing ink, clear and perfect printing quality, no
bias color, no mixing color, waterproof, wear-
resistant

3. Lift Cap Station System

Our 6090 UV flatbed printer with high quality

automatic ink absorption cleaning control unit,

which could greatly extend printhead life span

4. Vacuum Suction Table

Our 6090 printer adopt the high quality aluminum
vacuum suction table, which is energy-saving and
can absorb some uneven materials smoothly, and
ensure the platform levelness

5. High Precision Mute Guide Rail

Our 9060 printing machine use the high precision
mute Taiwan HIWIN guide rail, long service life,
high stability, immensely decrease noise while
printer is printing, within 40DB while printing.

6. Rotary Device Optional

The rotary device is mounted above the vacuum
suction platform, which realize both the flat
material and cylindery objects printing, like
bottles and cups.

Beidi Belt

Drag Chain

Encoder Strip

UV LED Lamp

Control Board

Adjustable Holder

Printing Samples

CMYK LC LM White Varnish optional

Our 9060 printer adopt small ink droplet printheads, provide high printing resolution printing, with variaible drop printing technology, achieve vivid printing effect. With multi-color printing, can print the 3D/5D/8D effect, embossing effect and glossy effect.

Phone Case

Decorative Painting

Mouse Pad

Wood Panel

Plastic

Advertising Sign

Acrylic

Ceramic Tile

Glass

Company Profile

Linyi Win-Win Machinery Co., Ltd

Linyi Win-Win Machinery Co.,Ltd is founded in 2009 in Shandong, China, is a high-tech machinery manufacturer, integrated with the R&D, production, sales and maintenance in a whole. We mainly manufacture large format UV printers and OEM service is available. We have 12 years experience in producing and exporting UV printers. The factory covers more than 20,000 square meters, with six professional production lines, mainly produce UV flatbed printer, UV
flatbed and roll to roll printer and UV hybrid printer. With high quality, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc., and OEM service is available.

The UV printer can widely print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc., and widely applied in decoration industry, glass industry, advertising&signs industry, leather, furniture and ceramic industry etc. All our printers arewith CE certificate.

Ntek UV Flatbed Printer-Warranty

We provide one year warranty for our uv printers including all the electronic parts including the main board, driver board, control board, motor, etc, except the consumables, such as printhead, ink pump, ink filter, and slide block etc.

Packing & Delivery

9060 UV Flatbed Printer-Packaging

Seaworthy Packing: Inner packing with strech plastic film, outside packing with export plywood casePacking Size: 2.435*1.22*1.34m/ Net Weight: About 300KGS/ Gross Weight: About 400kgs

Customer Photos

Ntek Printer Customer All Over the World

Now our factory is looking for agents all over the world, if you are interested, welcome you to joint us

FAQ

1. How long does the printing images will last outdoors and indoor?
UV Hybrid printer printed images can last at least 3 years outdoors, and more than 10 years indoor.

2. What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.

3. How about the stability and quality of the printing images?
This UV hybrid printer can used to print on most of medias with best quality, durability, best result.

4. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer
has to be responsible for the accommodation and transportation costs of the technical staff.

5. Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printer and UV hybrid printer.

6. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,
driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.

7. How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand
the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can
contact our technician or me directly.

8. Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

9. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like
TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

10. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
